RotoCrusher Super Mulcher

RotoCrusher® can be used for:

Stone and rock crushing.
Deep till mulcher.
Removal of stumps
Road Conditioning Stabilizer.
Mix and re-blend gravel roads
New dirt road building and re-juvenation.
Wood mulching

Blending Fines.

Rehabilitation and reclaiming of asphalt and asphalt stripper
Full Depth re-claimer.

To Download a brochure click here.

Open up new land, rejuvenate gravel roads.

Combination – Stone Crusher, Wood Mulcher and Deep Tiller for gravel road rehabilitation and soil conditioning.

Unlike many competitor machines that are wood mulcher designs modified for rock or deep till use, the RotoCrusher Super Mulcher was designed from the start as a heavy duty, below grade crusher for rock and soil.

Shown with optional compacting roller.

Standard RotoCrusher Blonxx Pics

Don’t Be Tied Into Expensive Proprietary Hammers

These are inexpensive & readily available. This feature makes the RotoCrusher the most economical machine in its class to operate.

When operating a rock crusher today, the largest cost is the wear parts / consumables. Over the life of the rock crusher you may spend more on wear parts than you did for the whole machine.

Unlike some competing rock crushers that use expensive square carbide hammers originaly designed for forestry mulchers, the RotoCrusher Super Mulcher uses Kennametal tungsten carbide pics that are readily available from several sources, are long lasting and economical. These pics were developed decades ago for use in the underground mining industry, and are widely used today in rock mining and on asphalt & concrete stripping machines.

These pics are the most economical type of wear parts for rock crushers at present.

Diamond RotoCrusher Blonxx Pics

When operating a rock crusher today, the largest cost is the wear parts / consumables. Over the life of the rock crusher you may spend more on wear parts than you did for the whole machine.

These pics are the most economical type of wear parts for rock crushers at present.

Each RotoCrusher® ships with two gearboxes which allows you the choice of 340rpm or 600rpm rotor speeds.

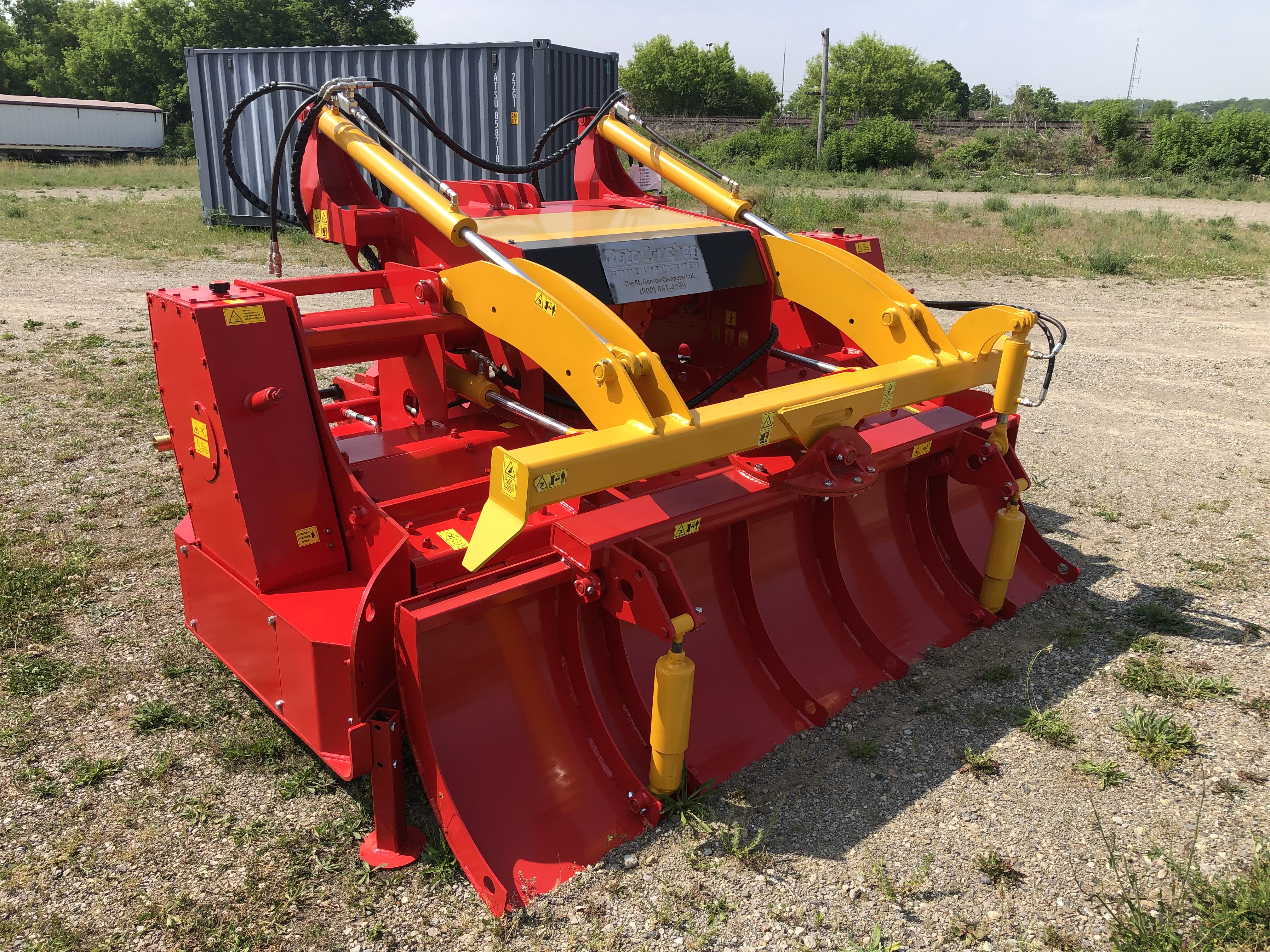

Shown with optional curved hydraulic leveling blade

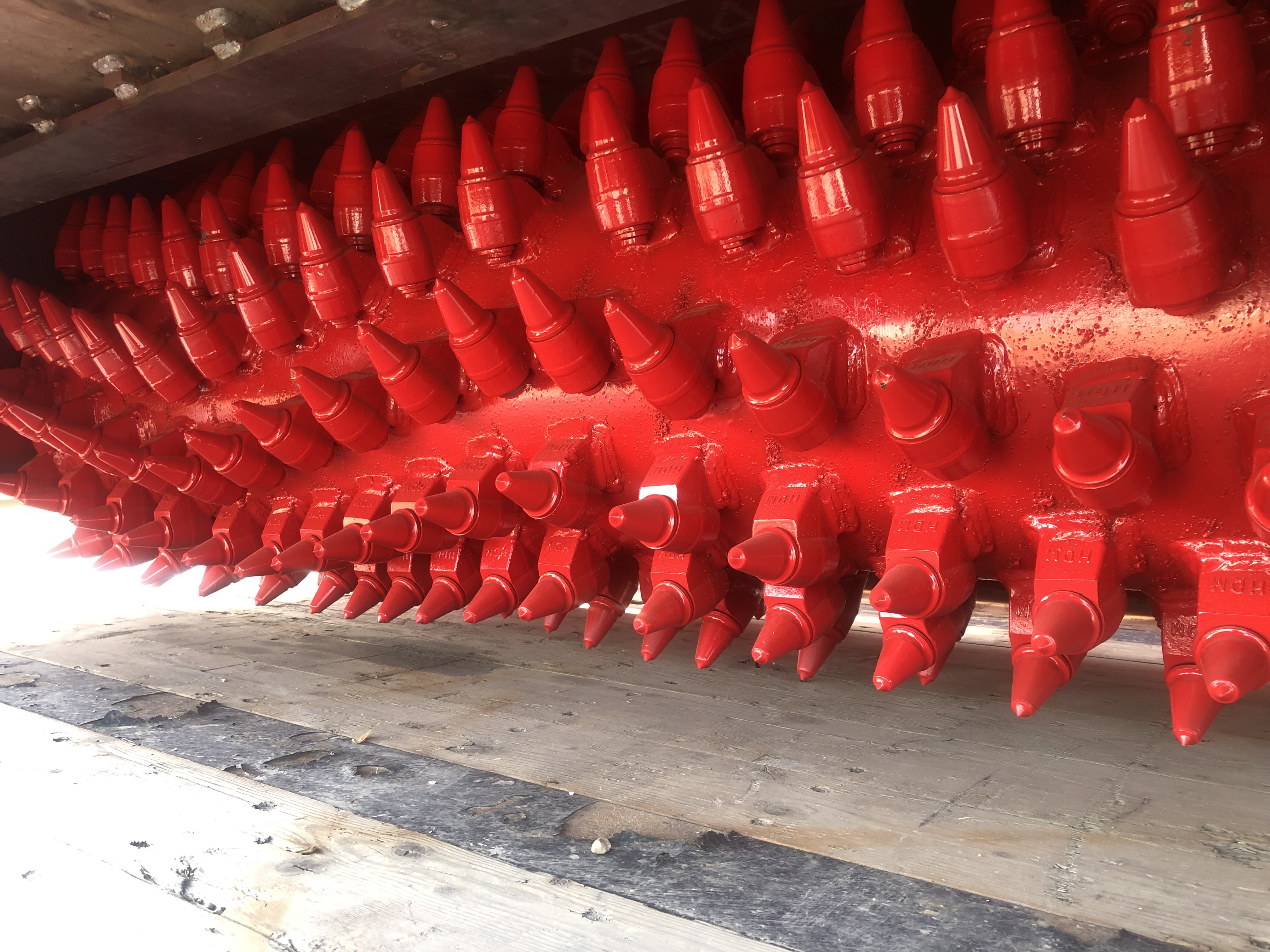

Tingsten carbide BlonXX pics arranged in a unique spiral pattern for maximum crushing efficiency.

Tungsten Carbide ‘BlonXXTM’ pics arranged in a unique spiral pattern for maximum crushing efficiency.

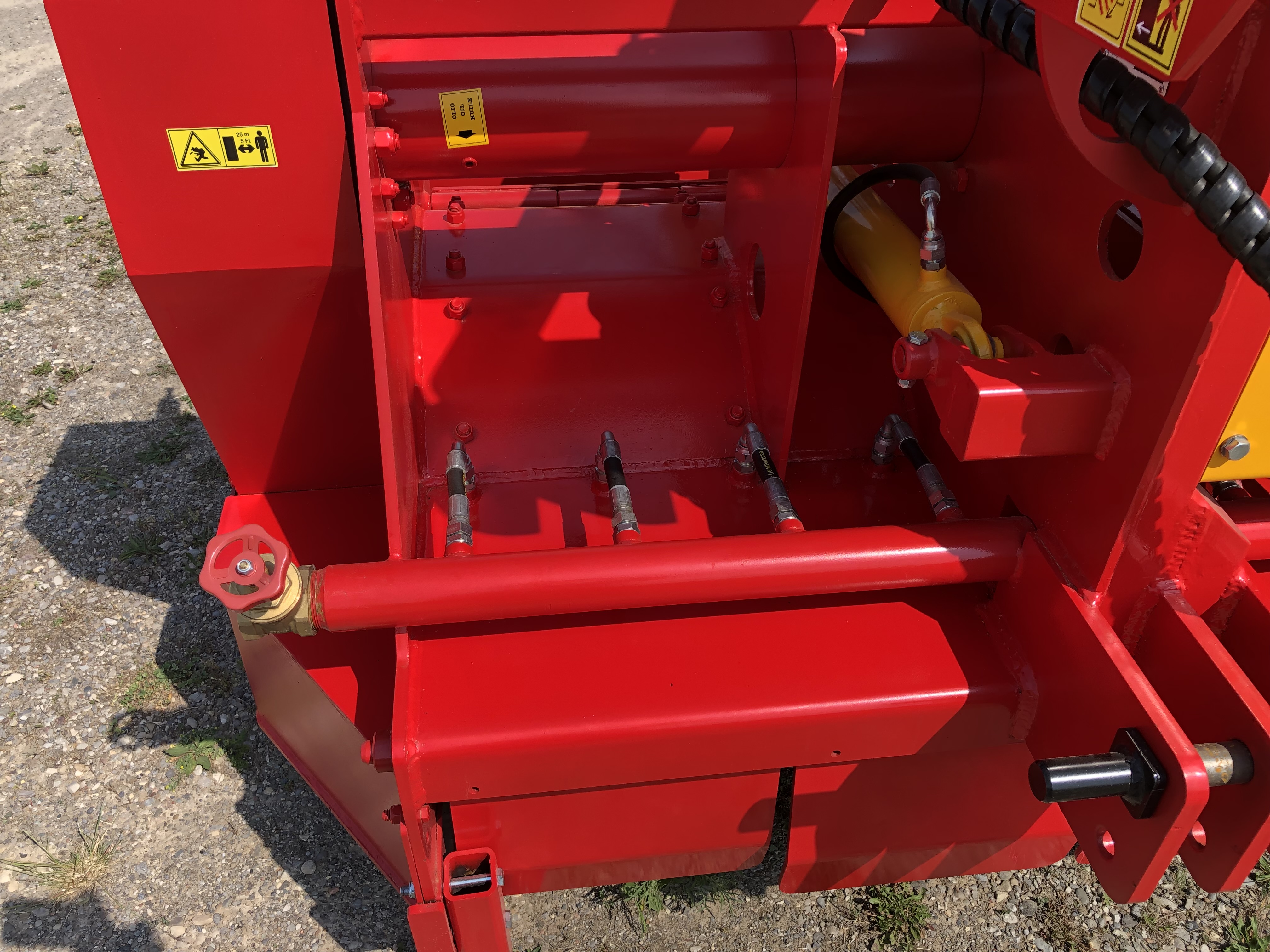

Adjustable grate made of HARDOX® steel is built in to the underside of rear door. Allows operator to determine the size of the finished product.

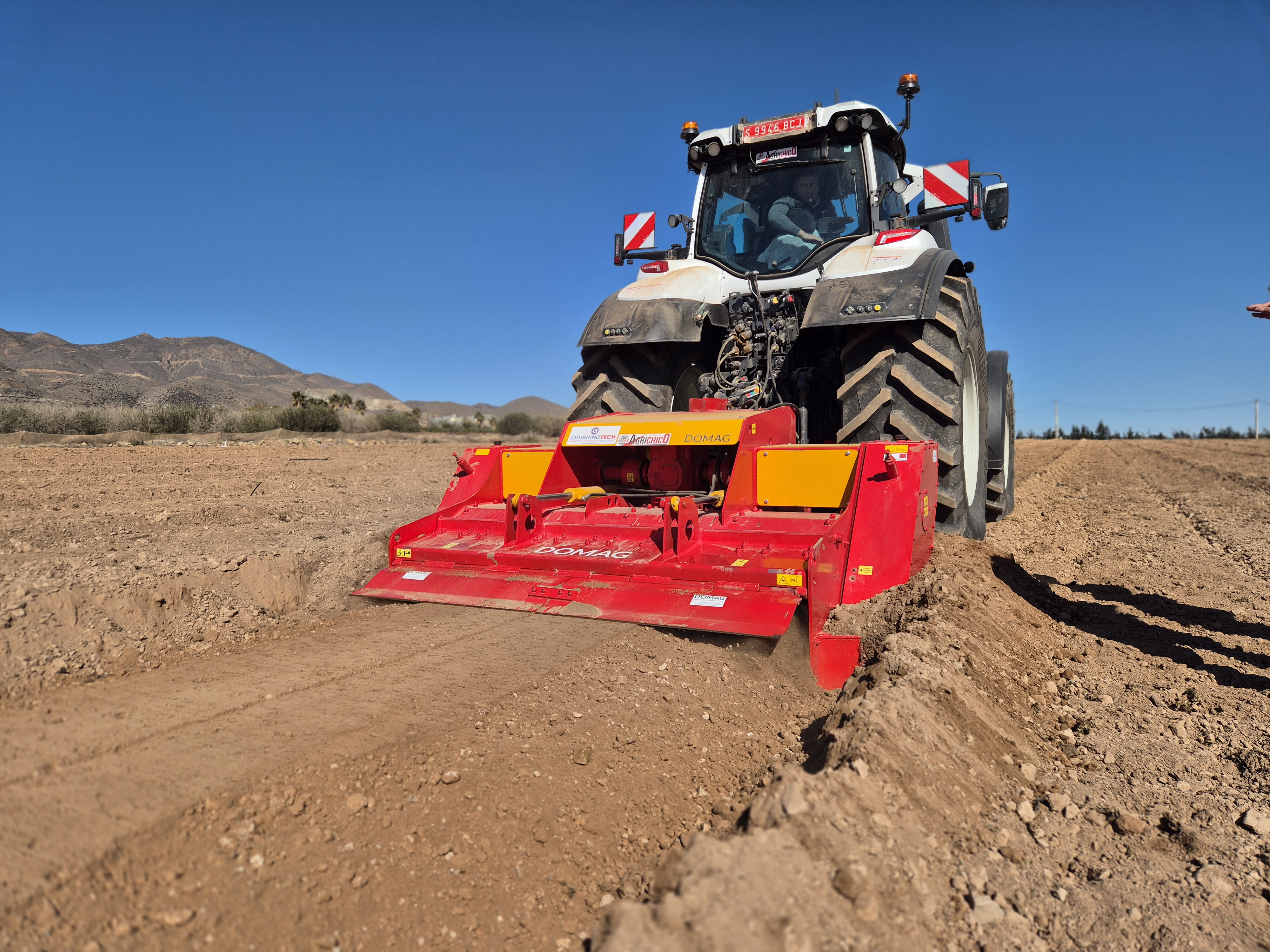

Maximize farmland by reclaiming rocky, overgrown and previously unusable areas.

Slower rotor speed for rocks and soil.

Features & Benefits:

Each RotoCrusher Super Mulcher® ships with an extra Bondioli & Pavesi gearbox which allows you the option of 340rpm or 600rpm rotor speeds. Slower rotor speeds are more effective for crushing rocks. Faster rotor speeds are better for stumps and wood.
The RotoCrusher Super Mulcher® is the ideal machine for opening up new land, removing stumps, crushing stones, removing old orchards or vineyards, mulching up slash from forestry operations, clearing land for pipelines, firebreaks etc.
The RotoCrusher Super Mulcher® can mulch wood and stumps up to 30cm/12″ dia., crush stones up to 25cm/10″ and work everything into the soil to a depth of 20cm/8″ on the first pass, and up to 40cm/16″ deep on the second pass.
The rotor consists of Tungsten Carbide ‘BlonXXTM’ pics arranged in a unique spiral pattern that work against a hydraulic adjustable serrated steel ‘grate’ to reduce to mulch virtually any material that it encounters.
Options includes a hydraulically controlled full length, curved leveling blade (or roller) / tree guard frame that provides a dual function. When positioned up it acts as a guard frame / tree pusher and when positioned down it functions as a land leveling / compacting roller that also controls the depth the Roto Crusher will work into the ground.

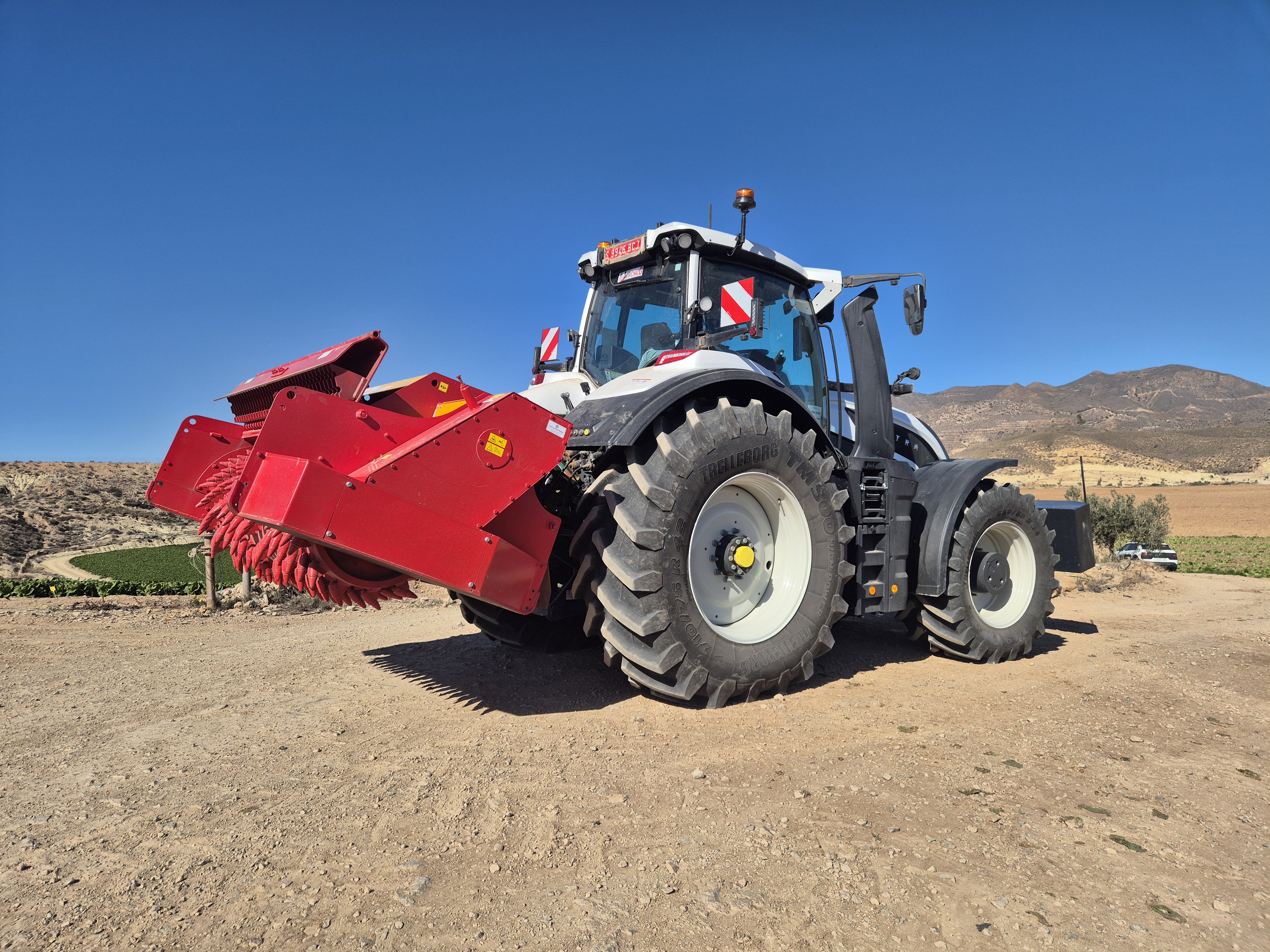

RotoCrusher Super Mulcher® is available in widths from 1.2 m to 2.2 m (3’11” to 7’2″) requiring tractors with 85 hp to 400 hp. CVT tractor recommended.
