Seven Multi-Forest Mulchers

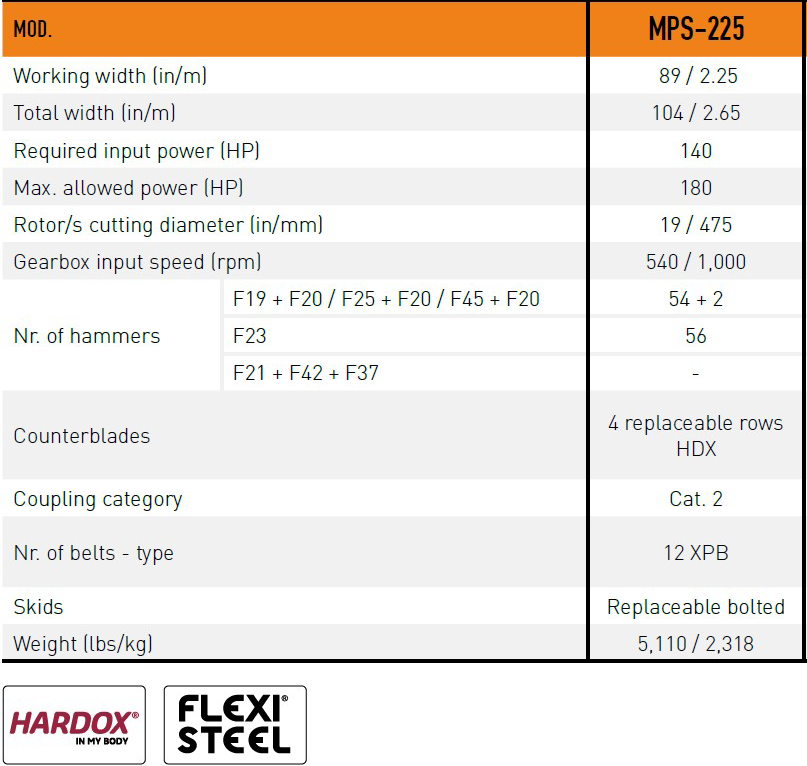

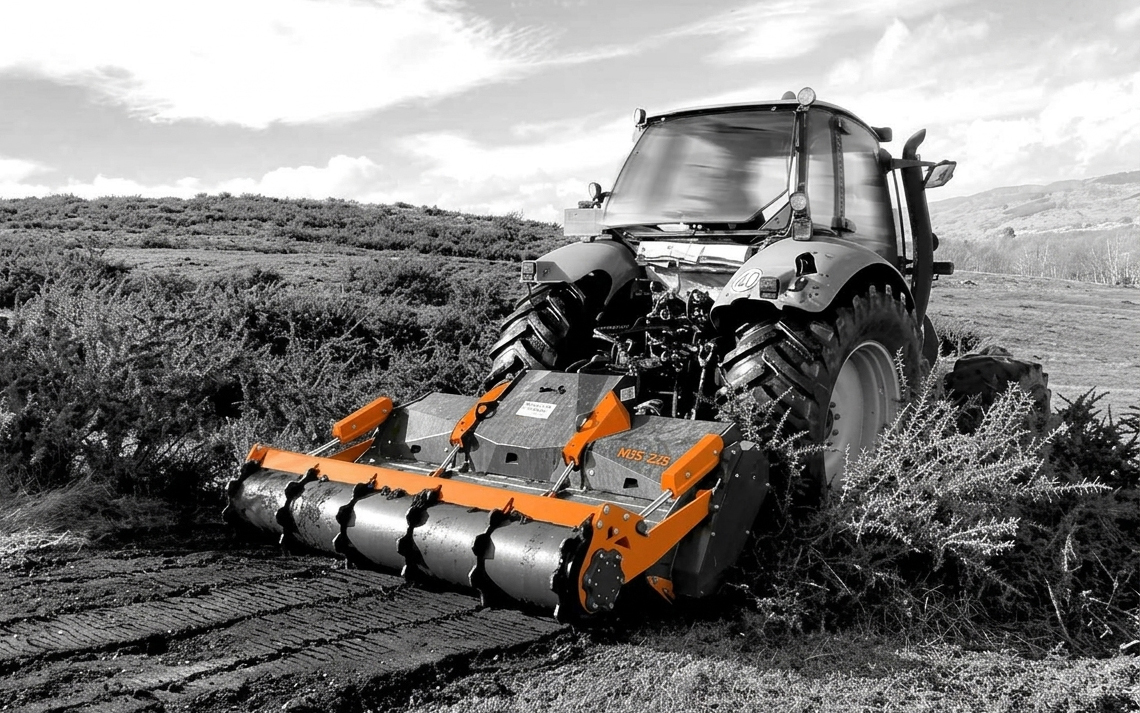

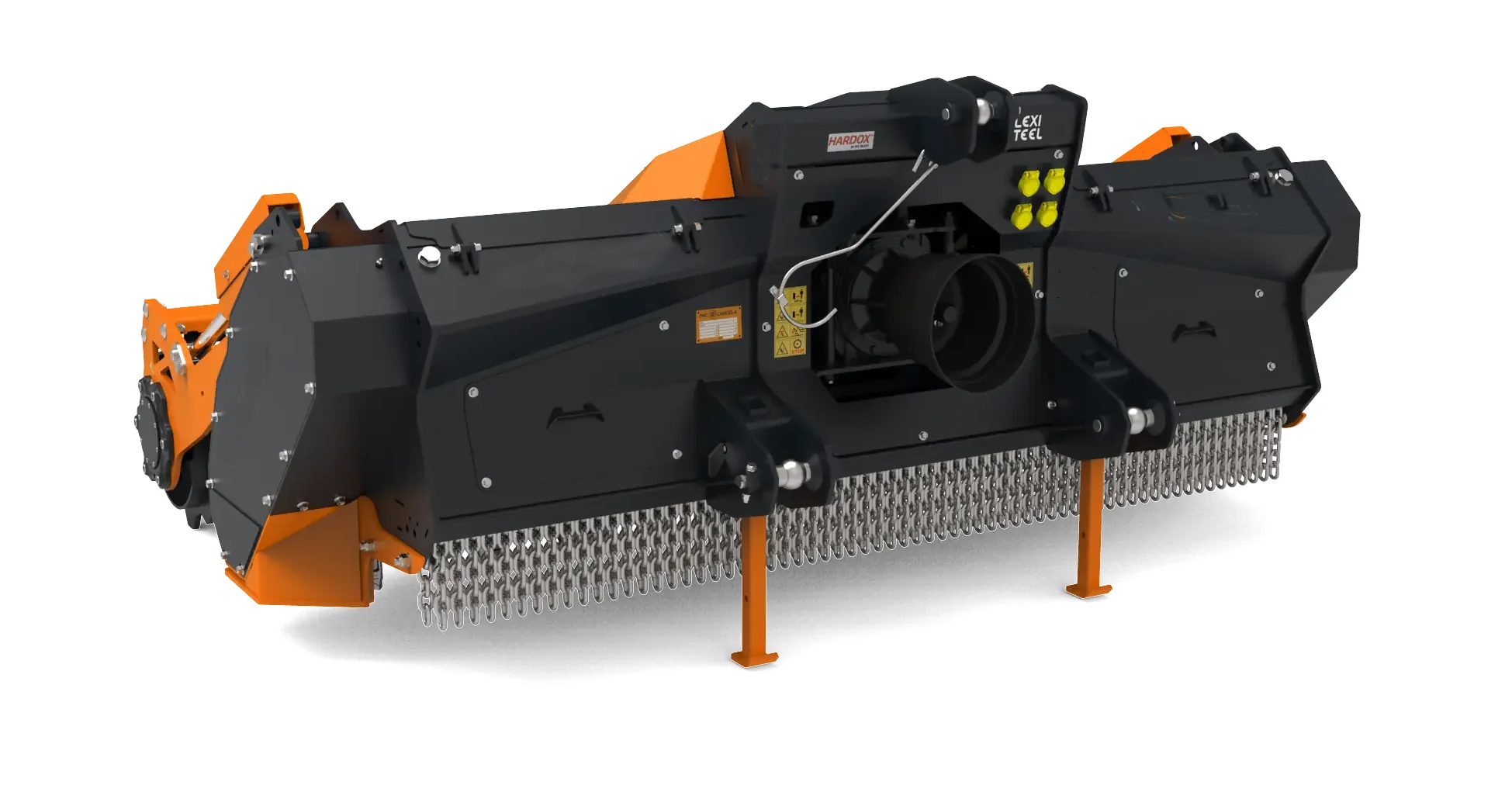

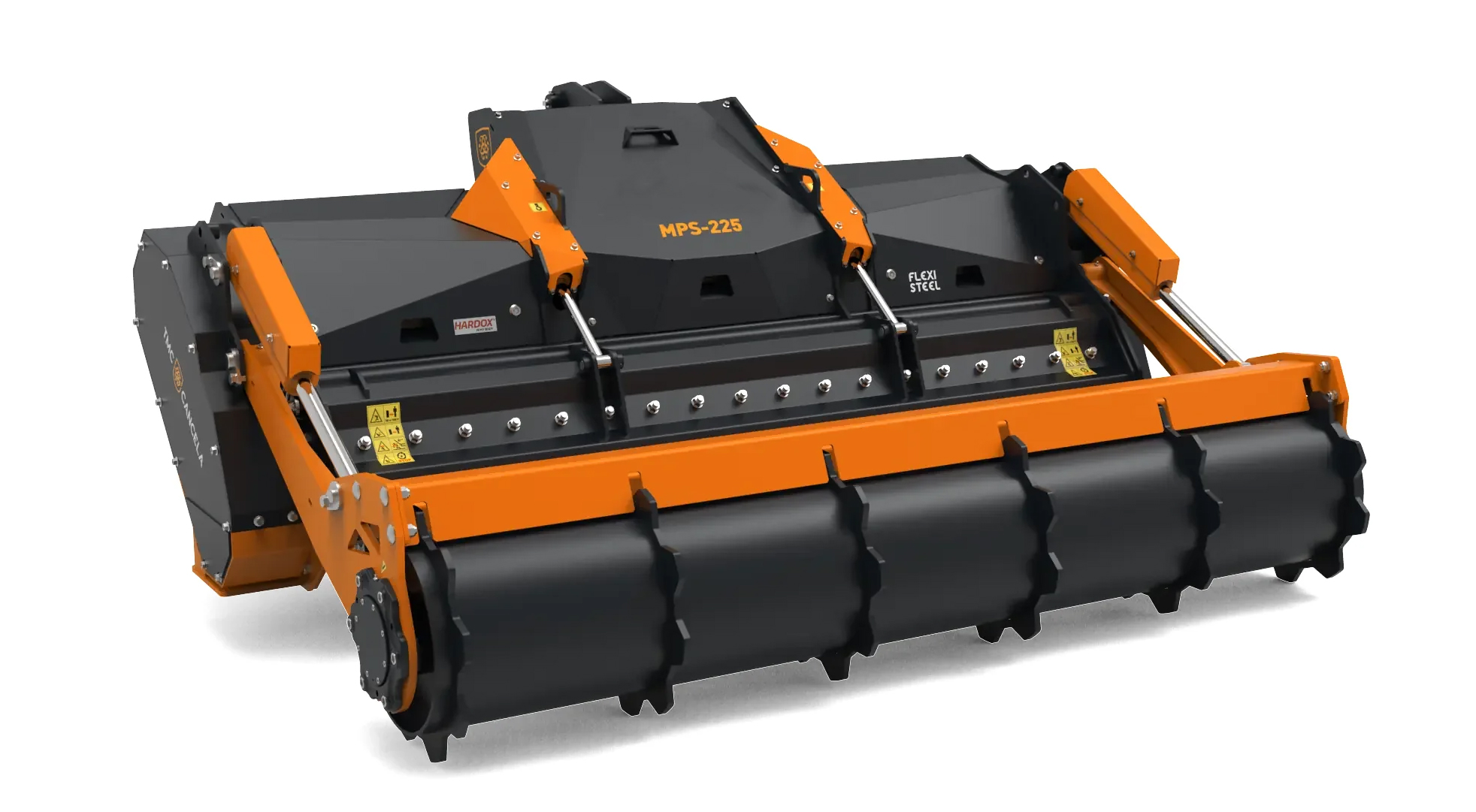

The Seven MPS Multi-Forest Mulcher
Working Width – 89 IN
Excavator Tonnage – TN
Material Diameter – 14 IN
Characteristics
- Body frame made of high-strength steel with special front design to facilitate the material entry.
- Protection by two chain curtains.
- Coupling to tractor Cat. 2 with fast coupling balls.
- Hydraulic hood with “Superfinish” system.
- Replaceable protection skids for deep work.
- Rotor with replaceable shafts and fixed hammers with helical disposition.

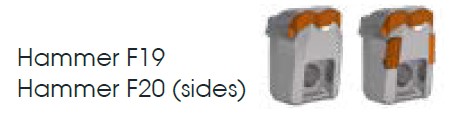

- Hammers with 2 carbide tips model F19 + F20 (Standard).
- Transmission to rotor with 12 XPB belts with ESB system and automatic tensioner.
- Reinforced PTO shaft.
- Reinforced gearbox, input to 540 (for tilling), 1,000 rpm (for mulching) and 1 3/4″ Z6.
- Replaceable counterblades on body frame and on hydraulic hood.
- PTO shaft included with 1 3/8″ Z6 tractor side.
The Seven MPK Mulit-Forest Mulcher
Working Width – 98 IN
Excavator Tonnage – TN
Material Diameter – 18 IN
Characteristics
- Body frame made of high-strength steel with special front design to facilitate the material entry.
- Protection by four chain curtains.
- Coupling to tractor Cat. 3 with fast coupling balls.
- 3rd hydraulic point with permanent aligning device (patented). Yoke tractor side Ø32 mm/1.26 in.
- Hydraulic hood with “Superfinishing” system.
- Sidestep system on body sides.
- Replaceable protection skids for deep work.
- Rotor with replaceable shafts and fixed hammers with helical disposition.
- Special tungsten carbide hammers for good soil penetration.
- Transmission to rotor with 12 XPC belts with ESB system and automatic tensioner.
- Reinforced PTO shaft with torque limiter.
- Two-speed output reinforced gearbox (manual shift), input to 1,000 rpm and 1 3/4″ Z20, with cooling system.
- Replaceable counterblades on body frame and on hydraulic hood.

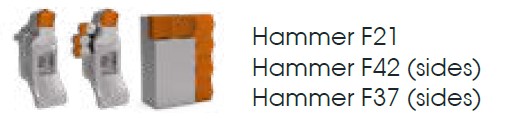

- F21 + F42 + F37 hammers with single tugsten carbide tips.
- PTO shaft included with 1 3/4″ Z20 tractor side.

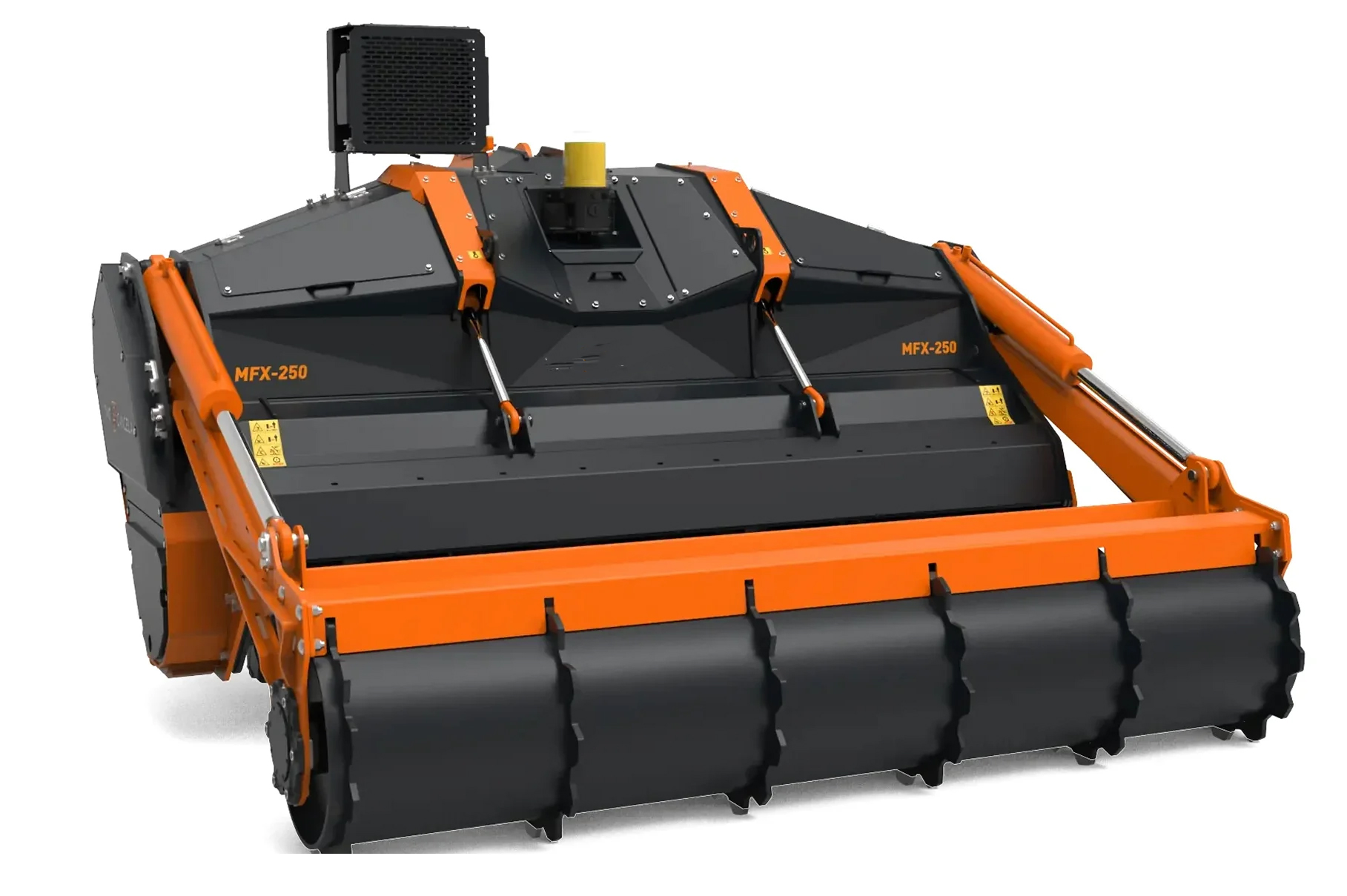

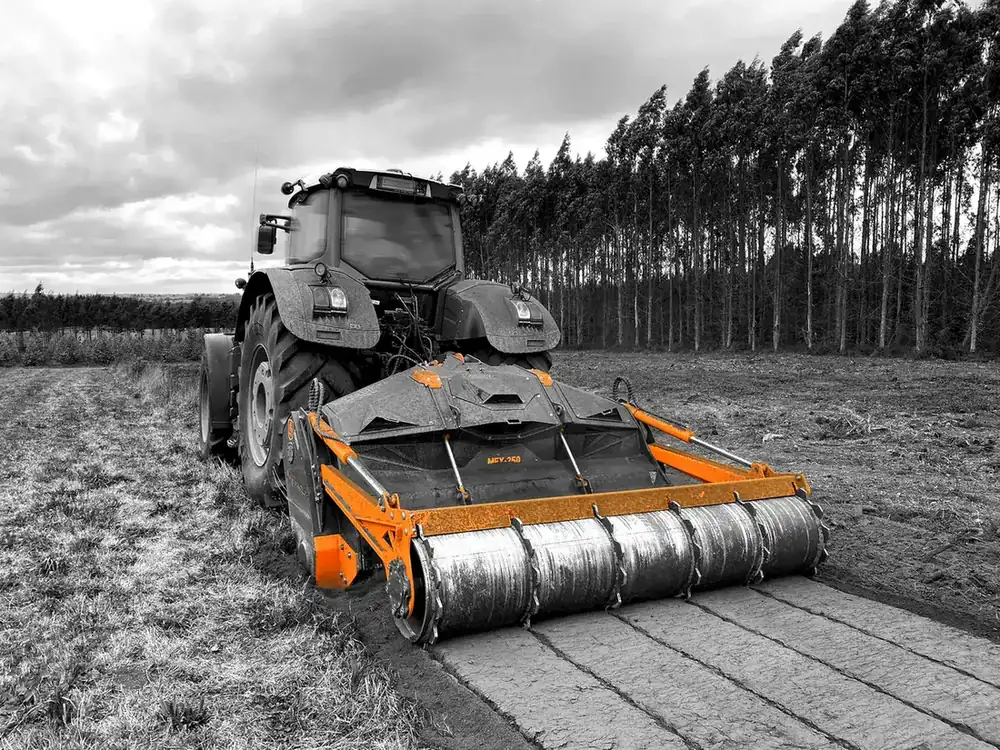

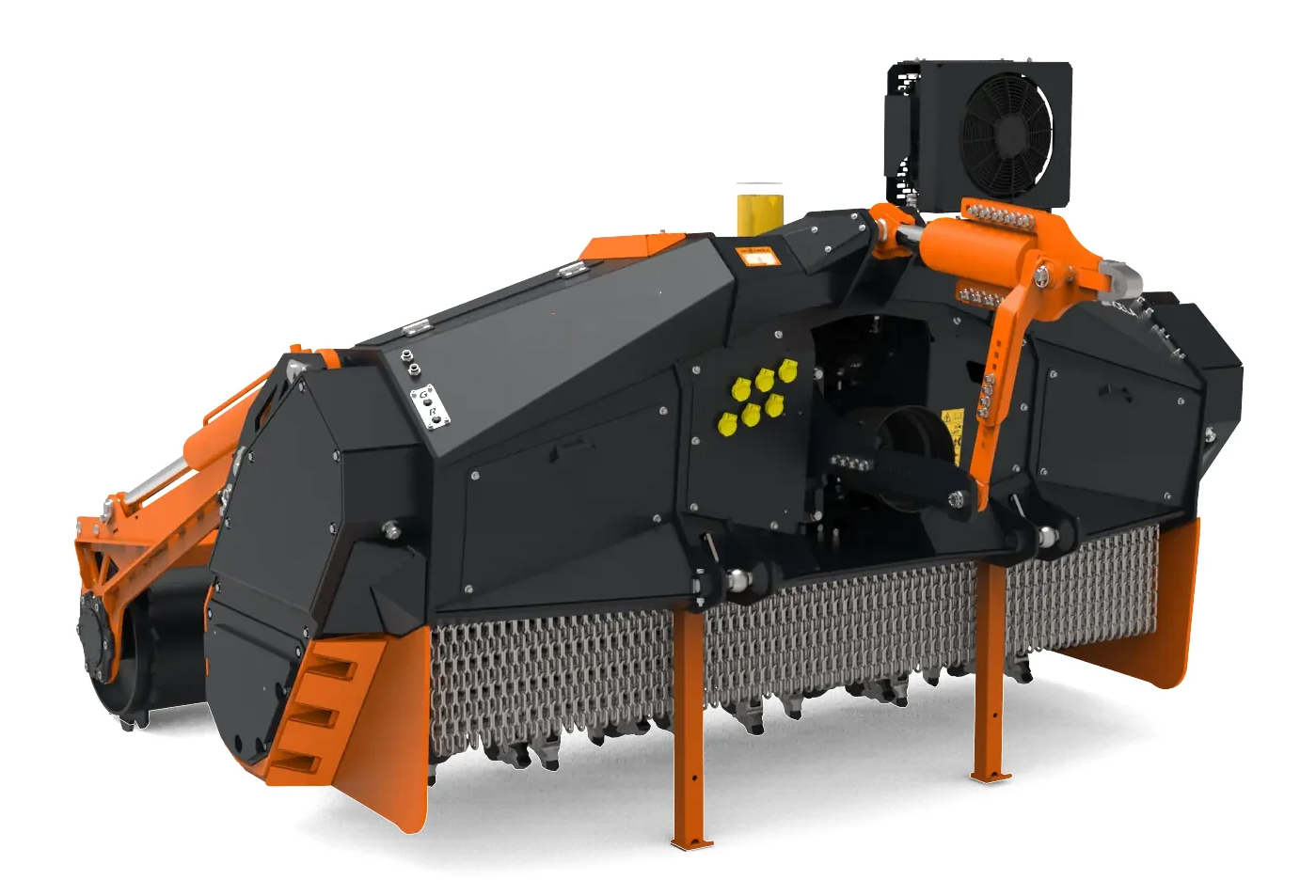

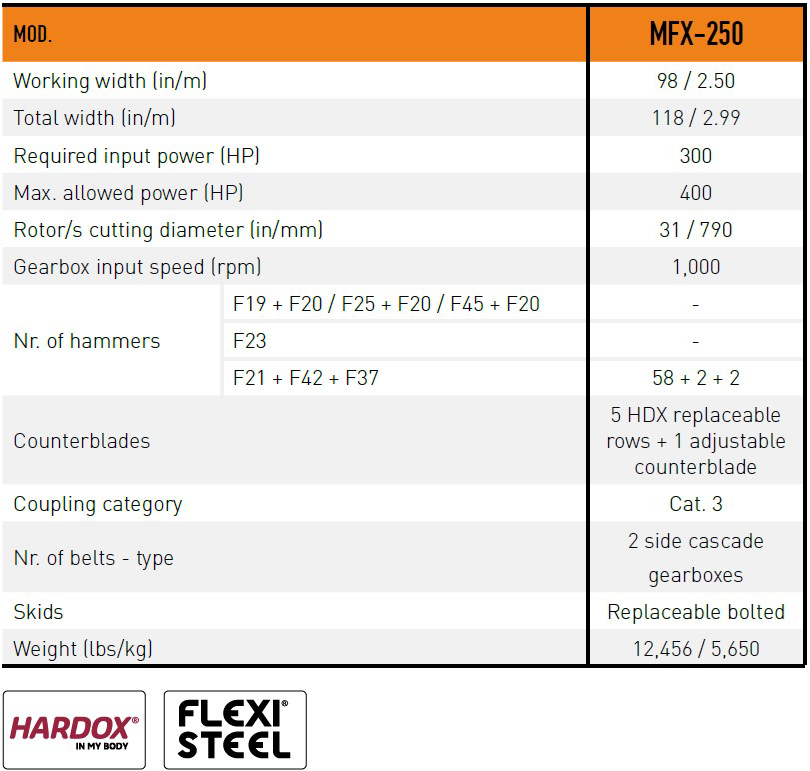

The Seven MFX Muli-Forest Mulcher
Working Width 98 IN
Excavator Tonnage TN
Material Diameter 18 IN
Characteristics
- Body frame made of high-strength steel with special front design to facilitate the material entry.
- Protection by 2 chain curtains.
- Coupling to tractor Cat. 3 with fast coupling balls.
- 3rd hydraulic point with permanent aligning device (patented). Yoke tractor side Ø32 mm/1.26 in.
- Hydraulic rear hood with a screen to classify the material.
- Sidestep system on body sides.
- Replaceable protection skids for deep work.
- Rotor with replaceable shafts and fixed hammers with helical disposition.
- Special tungsten carbide hammers for good soil penetration.
- Transmission to the rotor with side cascade gearboxes.
- Reinforced PTO shaft.
- Reinforced gearbox, input to 1,000 rpm and 1 3/4″ Z20, with cooling system.
- Replaceable counterblades on body frame and 1 adjustable input counterblade.
- F21 + F42 + F37 hammers with tungsten carbide tips.
PTO shaft included with 1 3/4″ Z20 tractor side.
