MISTRAAL DRUM FAN

Circulation Fans For Greenhouse Use

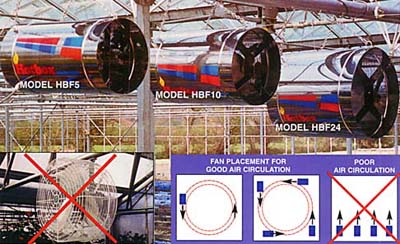

The Mistraal Drum Fan is a true directional airflow fan which provides maximum greenhouse air movement. Unlike regular open cage fans which tend to move the air in a “ball”-shaped flow around the fan, Mistraal Drum Fans (which are set inside a stainless steel drum) force the air down the greenhouse. Mistraal Drum Fans improve heat distribution and reduce temperature gradients. For larger areas use 8 fans per acre.

NOTE: Fans should be installed at a maximum 2.4 metres from the floor.



DRUM FAN
MODEL HBF5

DRUM FAN
MODEL HBF10

DRUM FAN
MODEL HBF24

PERFORMANCE:  Suitable for areas up to

100 m2  1200 sq. ft.

200 m2  2300 sq. ft.

500 m2  5500 sq. ft.

AIR MOVEMENT

900 m3 / HR  550 CFM

1600 m3 / HR 1000 CFM

4000 m3 / HR  2400 CFM

SPECIFICATION:

     Voltage

     Current

     Watts

     Fan Speed

     Size (Length x Dia.)



220v

0.4 amp

85 W / HR

1275 rpm

500 mm x 280 mm

(20” x 11”)



220v

0.6 amp

145 W / HR

1300 rpm

500 mm x 360 mm

(20” x 14”)



220v

0.8 amp

190 W / HR

1400 rpm

500 mm x 450 mm

(20” x 18”)

WEIGHT:

6 Kg (13 lbs)

7 Kg (16 lbs)

15 Kg (33 lbs)
