 sevenlogo Hydraulic Scap Magnet

NEW Hydraulic magnet is a handy accessory for demolition works to clean and separate iron and steel from waste concrete and wood. The control is direct by hydraulic of excavator or crane. Construction of hydraulic magnet is the combination of electric magnet coil and hydraulic generator with automatic control system.

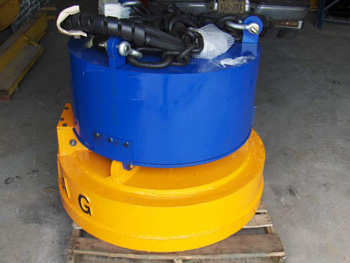

HPIM0246
HPIM0247
HPIM0250

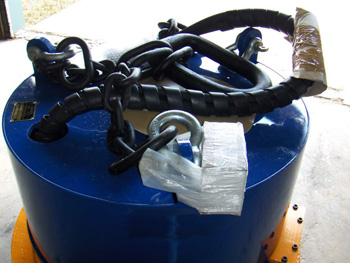

HPIM0251
Dynasetonexcavator

EASY TO USE
Control of hydraulic magnet works by breaker button or pilot pedal. Turning hydraulic oil flow on, the magnet is able to lift iron and steel. Turning hydraulic oil flow off, the magnet will demagnetize automatically

EASY AND QUICK MOUNTING!
Quick coupling with chain or quick coupling plate direct to boom. The oil flow need is very small and does not effect other hydraulic operations. The hydraulic magnet has own oil flow and pressure limiter valves so it can be used on any machine. Hydraulic quick couplings make mounting much faster and easier.

MODEL

HMAG 700-18

HMAG 900-32

HMAG 1200-48

HMAG 1500-54

DIAMETER

720 mm

950 mm

1250 mm

1450 mm

WEIGHT

350 kg

850 kg

1500 kg

3000 kg

COIL POWER

2.8 kW 220 VDC

4.5 kW 220 VDC

8.3 kW 220 VDC

10.2 kW 220 VDC

GEN. POWER

3.5 kW 220 VDC

6.0 kW 220 VDC

10 kW 220 VDC

10 kW 220 VDC

HYDRAULIC OIL FLOW

18 L/min

32 L/min

48 L/min

54 L/min

HYDRAULIC PRESSURE

210 bar / max 350 bar

210 bar / max 350 bar

210 bar / max 350 bar

210 bar / max 350 bar
