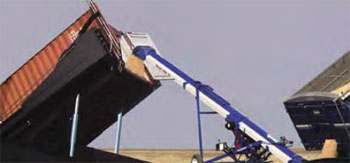

container tilter for pulse crops

Extra safety locks: All four cylinders are fitted with pressure control safety lock valves in case of hydraulic failure. Both front and rear container locks have two locking points on each side.



Adjustment: The dual ram design allows trailer height variation at a deck height of 43” to 54” above ground. The adjustable wheel guides allow for a variation of the trailer wheel’s outside dimensions of 95” to 101”.



Productivity: The loading angle of the container can be altered as product height is increased, this improved control increases loading productivity and safety as well as maximizing product loading weights.



Simple Control: With a remote operator control unit, the tilting operation can be done safely from a distance with no chains or off-center loads. The feathering control levers aid with fast container alignment.



Self Contained: Has a13 hp gas engine, a 3000 psi hydraulic pump and oil reservoir and an optional electric start.



Container Support: At the 90° fully tilted angle the base of the container is fully supported on each of its corners for minimal container damage.



Optional: Fabric or poly liners (for use when handling grain, beans, seeds, etc.. Hydraulic door closers. Larger 30HP diesel power pack for faster tilting operation and a load cell weigh system (accurate +/- 3%.
